Wave Soldering - Soldering Frames

Our extensive range of fixed and adjustable soldering frames are especially harmonised in order to meet the requirements and the standards set by today's production technology. In order to obtain long lasting durability the soldering frames, the driving features are hard-anodized.

Technical Data Soldering Frames

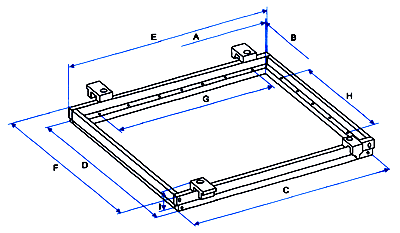

- - Carriers for masks Finger-carriers - - - - - - - Specification A B A B C D E F G H I EPM Part. No. Size Useful length Useful width Useful length Useful width Mask length Mask width Carrier length Carrier width Hole center distance, length Hole center distance, width Carrier high 1733 3/300 335 290 302 255 358 313 371 325 272 299 44 1734 4/300 404 290 371 255 427 313 440 325 340 299 44 1735 5/300 462 290 429 255 485 313 498 325 340 299 44 1736 6/300 564 290 531 255 587 313 600 325 544 299 44 1743 3/400 335 390 302 355 358 413 371 425 272 340 44 1744 4/400 404 390 371 355 427 413 440 425 340 340 44 1745 5/400 462 390 429 355 485 413 498 425 340 340 44 1746 6/400 564 390 531 355 587 413 600 425 544 340 44 1753 3/500 335 490 302 455 358 513 371 525 272 408 44 1754 4/500 404 490 371 455 427 513 440 525 340 408 44 1755 5/500 462 490 429 455 485 513 498 525 340 408 44 1756 6/500 564 490 531 455 587 513 600 525 544 408 44
