Wave Soldering Modular Economy

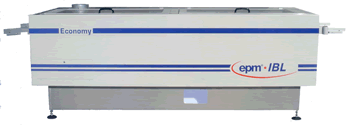

Wave Soldering - Modular Economy

The first wave soldering machine that grows with your requirements.
For small to medium production the Modular Economy machine

LEAD FREE (Meets the new EU-Regulations which will be implemented in 2006)

Carrier Transport
The carrier conveyor can be used
for fixed or adjustable frames.

Conveying System
The inlet and outlet
are at the same level.

Solder Pot
The solderbath centering
allows easy removal of the bath.

Preheater
The proven preheating system
is equipped with 9 IR beams.

Atomiser or Foam Fluxer
The atomiser fluxer processes all fluxes with low solid parts. This system was developed for the very finest reproducible flux application.

N2 Cover
Automatic gas infeed over the soldering waves reduces oxidation during the soldering process. It is possible to retrofit the N2 cover anytime.

Technical Data

Connected load
Electrical connection: 230/400V +10%/ -15%, 50/60 Hz
Total connected load: 16.5 kW
Fuse protection (customer): 3 x 25 A slow-action
Compressed air Connection: ¼", Output: 5 - 6 bar constant, Quality: filtered 5µ, Consumption: app. 0.16 m³/h production-related
Exhaust air fluxer: Connection: 1 x Ø 200 mm, Capacity approx. 400 m³/h
Shielding gas (optional): Connection: ½" female thread, Capacity: 4 bar constant, Consumption: approx. 12 m³/h production-related

Conveyor
Conveying speed: 0,5 - 2,5 m/min
Conveyor angle over waves: 7.5°

Fluxer
Foam fluxer: Height adjustable
Atomizer Fluxer (optional): Control: Width in 9 levels, Quantity in 6 levels

Preheater
IR-preheating power
Economy 300: 9 x 1.20 kW = 10.8 kW Economy 400: 9 x 1.32 kW = 11.88 kW

Solder pot
Solder pot heater: 6 x 1.0 kW = 6.0 kW
Solder pot auxiliary heater: 2 x 0.5 kW = 1.0 kW
Solder pot temperature: 230° - 280° C
Solder filling: 450 kg
Solder heat-up time: Approx. 180 min
Height hollow wave: 5 - 40 mm
Height full wave: 4 - 9 mm
Solder wave width: Economy 300: 320 mm / Economy 400: 420 mm
Wave crest spacing: 130 mm
Solder pot stability: ± 1° C

Misc.
Sound level: < 65 dB
Other power consumers: 1.5 kW
Dimensions machine (l x w x h): 3.50 x 0.95 x 1.27 m
Weight machine without solder filling: 550 kg
Colour Grey-White RAL 9002

Technical data subject to change without prior notice.
