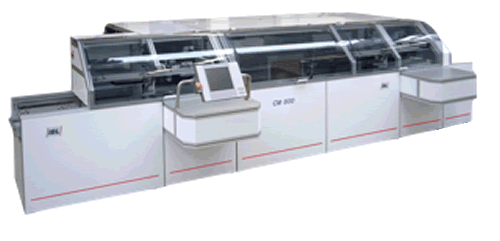

| Vapour Phase Reflow - CM 800 | ||||||||
|
||||||||
 High Performance In-Line Vapour Phase Soldering System |
||||||||
|
||||||||
| Fully
automated inline production Precise and highest product quality at maximum performance for single and double-sided boards. Easy line integration with standardized SMEMA interface. |
||||||||
 |
||||||||
|
||||||||
| Temperature
profiles Automatic control of temperature times (soak time, time over liquidus) in using proven and patented Soft Vapour Phase (SVP) technology. Traceability and documentation of temperature profiles with continuous process control. Exact reproducibility of temperature gradients, plateaus (e.g. soak temperature) and hold times (e.g. time over liquidus) prevents solder failures in 24/7 operation. |
||||||||
|
||||||||
 |
||||||||
|
||||||||
| Transportation
system Patented transportation system for smooth vibration-free operation. No Set Up time for change between different products with fully automatic track adjustment in combination with interactive machine control. |
||||||||
|
||||||||
 |
||||||||
|
||||||||
 |
||||||||
|
||||||||
 |
||||||||
|
||||||||
| Low Operating
Cost The fluid recovery system ensures low consumption of liquid agent. The low process temperature and efficient temperature control result in low energy consumption. Inert soldering atmosphere without the use of nitrogen. The machine design provides cool handling which results in maximum production throughput with low maintenance requirement. |
||||||||
|
||||||||
| Double-Soft-Vapour
Highest quality throughput with "Double-Soft-Vapour". Latest generation high performance vapour phase soldering machine with Double-Soft-Vapour Technology. Ideal for large series production provides highest quality standards with proven process technology. Double Soft Vapour uniquely combines robustness with reproducible results and maximum performance. |
||||||||
|
||||||||
| Cool
Handling All moving parts are outside the process chamber for fast and easy maintenance and continuous operation. Fully automatic product change without set-up time. 100% documentation of soldering process with optional scanner system. |
||||||||
|
||||||||
| System
Control Permanent access on all process and machine parameters through Dialogue Controller with real-time control module. Remote access and integration in complete line control. Easy maintenance support through remote diagnosis. |
||||||||
|
||||||||
|
||||||||
|
||||||||
