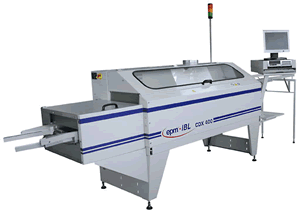

Wave Soldering CDX

Wave Soldering - Hi-Tech CDX

Module based single and double wave soldering machine for small volume production or throughput.

LEAD FREE (Meets the new EU-Regulations which will be implemented in 2006)

The specially treated (body coated) solder pot enables lead free soldering of the pcb's. The height of the turbulent hollow solder wave and of the smooth full solder wave can be programmed independently.

Innovative Soldering Technique from epm® and the Details are our strength

	Atomizer and / or foam fluxer The atomizer fluxer processes all fluxes with low solid parts. This system was developed for the very finest reproducible flux application. The flux is pumped directly from the original flux container to the atomising nozzle.

	Preheater The proven preheating system is equipped with nine infrared beam emitters. The standby feature avoids unnecessary energy consumption, thereby prolonging the life of the emitters.

	Carrier or finger transport The carrier conveyor system can be used for both fixed and adjustable frames. The finger conveyor system can be equipped with V-fingers (direct gripping of the pcb’s) or with L-fingers (holder for epoxy mask with pcb’s).

	Coding A barcode or binary- code system is available which communicates with the Management Information System (MIS). If no coding system is installed, the codes can be administered and retrieved manually.

	N2-cover Automatic gas infeed over the soldering waves reduces oxidation during the soldering process. It is possible to retrofit the N2 – cover at a later stage.

Technical Data

Connected Load
Electrical connection 230/400V +10%/ -15%, 50/60 Hz
Total connected load = 21.0 kW
Fuse protection (customer) 3 x 25 A slow-action
Compressed air Connection: ¼", Output: 5 - 6 bar constant, Quality: filtered 5µ, Consumption: app. 0.16 m³/h production-related
Exhaust air solder pot Connection: 1 x Ø 200 mm, Capacity approx. 400 m³/h
Exhaust air fluxer Connection: 1 x Ø 120 mm, Capacity approx. 50 m³/h
Shielding gas (optional) Connection: ½" female thread, Capacity: 4 bar constant, Consumption: approx. 12 m³/h production-related.

Conveyor
Conveying speed Carrier-/Finger conveyor: 0,5 - 2,5 m/min.
Conveyor angle over waves Carrier transport: 7.5° fixed, Finger conveyor: 9° fixed.

Fluxer
Atomizer Fluxer Control: Width in 9 levels, Quantity in 6 levels
Foam fluxer: Height adjustable.

Preheater
Preheater IR-preheating power 9 x 1.32 (1.20) kW = 11.88 (10.8) kW

Solder Pot
Solder pot heater 6 x 1.0 kW = 6.0 kW
Solder pot auxiliary heater 2 x 0.5 kW = 1.0 kW
Solder pot temperature 230° - 280° C
Solder filling
Single-wave soldering machine 280 kg
Double wave soldering machine 450 kg
Solder heat-up time 280/450 kg bath approx. 120/180 min
Auomatic solder refill Solder wire Ø 6 mm, coil Ø 305 x 110 mm
Height hollow wave 5 - 40 mm
Height full wave 4 - 9 mm
Solder wave width:
CDX 300/320: 320 mm
CDX 400: 420 mm
Wave crest spacing 130 mm
Solder pot stability ± 1° C

Control
Robotronix-control PC / MIS

Misc.
Sound level < 65 dB
Other power consumers 1.5 kW
Dimensions machine (l x w x h) 3.50 x 0.90 x 1.27 m
Weight machine without solder filling 400 kg
Colour: Grey-White RAL 9002

Technical data subject to change without prior notice.
