Routing



MACHINE CONFIGURATION
Machine Model

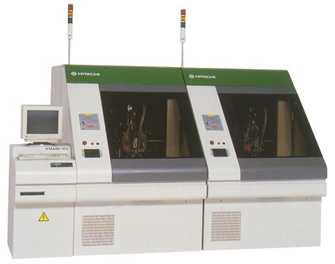

NR-2E210E
NR-4E210E

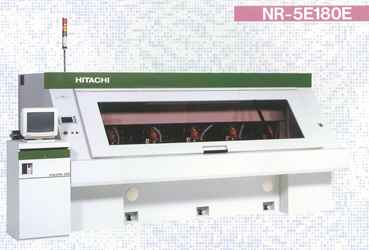

NR-5E180E
NR-5E210E
NR-6E180E
NR-1V211E
Number of stations
2
4
5
5
6
1
Spindle spacing mm.
(inch)
555
(21.85)
555
(21.85)
475
(18,70)
538
(21.18)
475
(18,70)
-
Rout area/station mm.
(inch)
550x690
(21x27)
550x690
(21x27)
470x690
(18x27)
533x690
(21x27)
470x690
(18x27)
535x690
(21x27)
Axis travel mm.
(inch)
625x690 (24x27)
625x690 (24x27)
625x690
(24x27)
625x690
(24x27)
625x690
(24x27)
535x690
(21x27)
Tool change
50
50
50
50
50
50
Option
150
150
150
150
150
250


SPECIFICATIONS
Positioning system: XY split-axis, Brushless AC servo motor
Positioning speed: 15,00Omm/min (590 IPM)
Positioning accuracy: ±0.010mm (±0004inch) [Hitachi Measurement Standard]
Z-axis system: Linear direct drive, Brushless AC servo motor
Feed rate: 101 to 10,00Omm/min (4 to 3931PM)
Retraction rate: 101 to 25,40Omm/min (4 to 1,OOOIPM)
Spindle: Ball bearing spindle, 10,000 to 50,000min-¹ (RPM)
CNC: H-MARK-10R


MAJOR OPTIONAL FEATURES
*0.0005mm (.00002 inch) glass scale
*Tool height detector [Patented]
*Pinless routing [Patented]
*Custom tooling plate design
*Spot face function (Depth control routing) [Patented]
*Stand-alone vacuum system
*Auto work presetter
