| These high-precision
CNC Drilling Machines for small hole drilling of multiplayer printed circuit
boards are the result of Hitachi's comprehensive hardware and software
technology. |
| |
|
| |
| Distinctive
Features:- |
| |
|
| |
 |

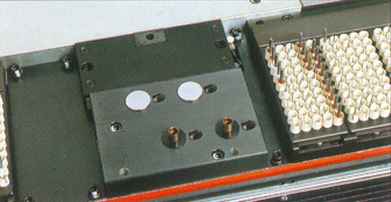

Quick
insert changer
Use of a pressure foot bushing designed for small diameter hole
drilling which increases the drilling efficiency and drilled hole
quality.
The special pressure foot and the standard pressure foot are automatically
switched, but the drill bit exchange time remains the same as a
standard machine. |
|
| |
|
| |
 |

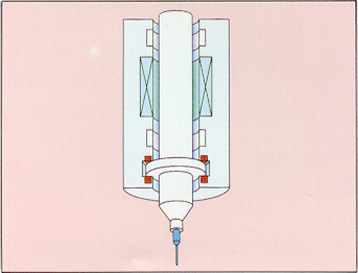

Front
thrust spindle
The front thrust design spindle minimises drill bit breakage and
provides stable small hole drilling. |
|
| |
|
| |
 |

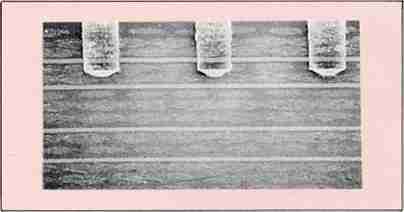

Blind
hole function - Spot face function
Drill/rout depth is precisely controlled by measuring tool height
after each tool change and panel height at each drilling/routing
location with digital detection system |
|
| |
|
| |
 |

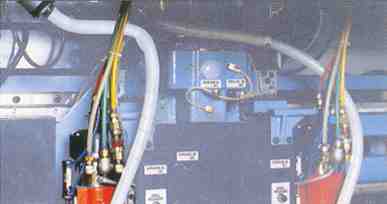

Broken
drill bit detector
Unique, reliable method of chip counting. Maintains long-term stability. |
|
| |
|
| |
 |

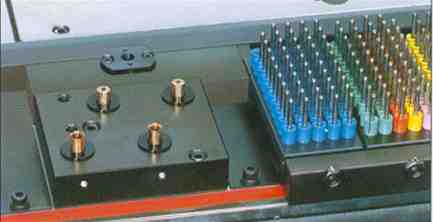

Tool
cassette design
Easy to handle 50 tool cassette design allows flexible tool management.
Optional ringless tool design also available. |
|
| |
|
| |
 |
Tool
height detector - Tool height compensation Tool diameter checker
- Dynamic run-out checker
Tool verification features prevent scrap panels due to wrong size
