Hitachi P Series



High Productivity
The machine is designed to achieve high productivity for small to large size holes with various applications.
Self-Protection Design
The machine is designed to stop by wrong operation or malfunction.
Consistency of Accuracy
The steel based machine structure with single material eliminates error caused by different thermal expansion coefficients. The CPU control digital servo system achieves consistent servo performance
Minimum Maintenance Cost
Every component and module is designed for high reliability. Rigid mechanical design, self-protection design and reliable component design achieve simple preventive maintenance and minimize maintenance cost.


MACHINE CONFIGURATION
Machine Model
ND-4P250E
ND-5P210E

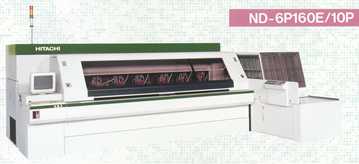

ND-6P160E
Number of stations
4
5
6
Spindle spacing mm. (inch)
635 (25.00)
538 (21.18)
415 (16.33)
Drill area/station mm. (inch)
630x690 (24x27)
533x690 (21x27)
410x690 (16x27)
Axis travel mm. (inch)
650x690 (25x27)
625x690 (24x27)
625x690 (24x27)
Tool change
150 (Max. 250)
150 (Max. 250)
150 (Max. 200)


SPECIFICATIONS
Positioning system: XY split-axis, Brushless AC servo motor
Positioning speed: 50,00Omm/min (1,968 IPM)
Position feedback: 0.0005mm (.00002inch)
Positioning accuracy: ±0.005mm (±0002inch) glass scale
[Hitachi Measurement Standard]
Z-axis system :Linear direct drive, Brushless AC servo motor Independent drive Feed rate: 101 to 12,70Omm/min (4 to 500IPM)
Retraction rate: 101 to 25,40Omm/min (4 to 1,OOOIPM)
Spindle:
Model H512 15,000 to 125,000min-¹(RPM)
Model H912B 20,000 to 125,000min-¹(RPM)
Model H916A 30,000 to 160,000min-¹(RPM) Option
Drilled hole accuracy: ±0.020mm (±0008inch) [Hitachi Measurement Standard]
Tool height detector (Patented)
Broken drill bit detector (Patented)
*Smaller machine with narrow spindle spacing is available.


MAJOR OPTIONAL FEATURES
*Ringless drill handling (Patent pending)
*Tool height compensation
*Tool diameter checker (Patented)
*Dynamic runout checker (Patent pending)
*Blind hole function (Depth control drilling) (Patented)
*Auto upper stroke limit adjustment
*Various peck-drill cycles
*Custom tooling plate design
*Stand-alone vacuum system
*ABC-10P Type Automated system
*Various types of automated system
