| Hitachi V Series |
|
 |
|

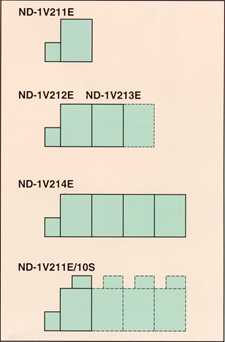

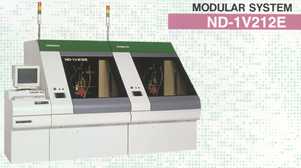

| ND-1V212E Flexible modular design *1 spindle drilling machines *ABC-10S type auto load / unload Continuous 20 drilling cycle (Option) *1 CNC controls upto 4 drilling machines |
|
| SPECIFICATIONS Drill area: 535 X 69Omm (21 X 27inch) Toolchange: 250 (MAX600) Positioning speed: 50,00Omm/min (1,9681PM) Position feedback: 0.0005mm (.00002inch) Positioning accuracy: ±0.005mm (±.0002inch) [Hitachi Measurement Standard] Feed rate: 101 to 12,70Omm/min (4 to 500IPM) Retraction rate: 101 to 25,40Omm/min (4 to 1,OOOIPM) Spindle: Model H512 15,000 to 125,000min-¹(RPM) Model H912B 20,000 to 125,000min-¹(RPM) Model H916A 30,000 to 160,000min-¹(RPM): Option Drilled hole accuracy: ±0.020mm (±0008inch) [Hitachi Measurement Standard] Tool height detector (Patented) Broken drill bit detector (Patented) |
|
 |
|
|
