| Stencil Printing - SIM 60 |
|
 |
|
| The

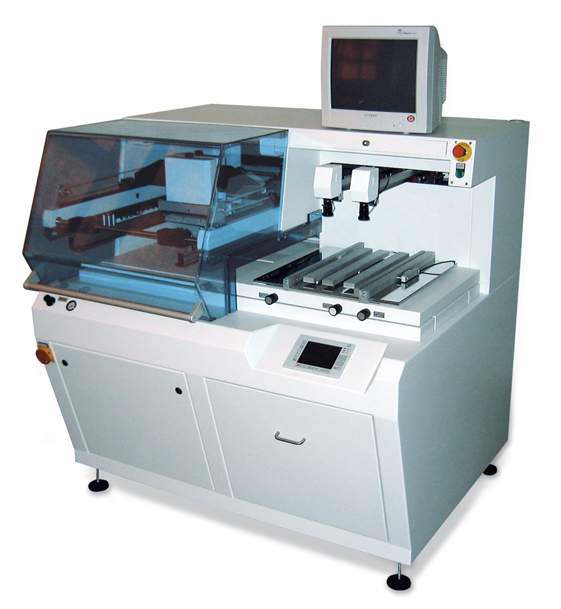

SIM60 is a manually operated, semi-automatic screen-printing and stencil-printing
machine. The SIM60 has been designed for applications requiring maximum
precision combined with high economic viability. The user-friendly and practice-oriented design concept of the SIM60 makes for easy-to-operate functions, short conversion times and high flexibility. The SIM60 allows you to print on both flexible and rigid substrate materials such as circuit-boards, glass, ceramics and metal with strengths of up to 25 mm. All relevant parameters such as squeegee pressure, squeegee speed and separation speed can be saved and called up when needed. The optional easy-to-operate TPH (Table Positioning Help) is equipped with two colour cameras. The positioning is performed manually by the engineer / operator. The printing process can only begin after the PC of the TPH-system has signalled that the table is in the right position. The circuit-board clamping mechanism and support allow the machine to accommodate the circuit-boards and any other printing matter with a high degree of flexibility. It is possible to integrate a high-speed stenter frame. |
|
| Technical
Data: Approximate Dimensions: width: 1500mm depth: 1400mm height: 1400mm Work Table Height: height: 850mm Print Area: min: 75mm x 75mm max: 300mm x 450mm Table Dimensions: 500mm x 500mm Board Thickness: min: 1mm max: 25mm Frame Size: min: 300mm x 300mm max: 590mm x 800mm Print Speed: min: 5 mm/s max: 200 mm/s Print Pressure: min: 0,5 bar max: 4,0 bar Table Movement: (X/Y1/Y2 - Axle) ±10mm Repeatability: mechanical < 10µm Air Supply Requirements: 5-6 bar Power Requirements: 230V 50/60 Hz Power Consumption: 0,5 KW Approximate Weight: 550 kg |
|
|
