| Stencil Printing - SIM 40 | |||
|
|||
 |
|||
|
|||
| The

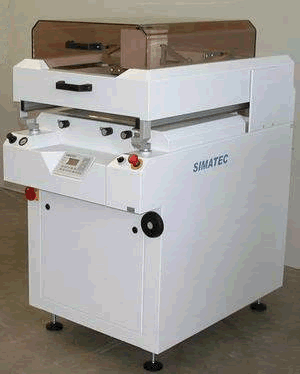

SIM40 is a manually operated, semi-automatic screen-printing and stencil-printing
machine. The lateral squeegee crossbeam and the squeegee pressure control
allow you to maintain a consistently high printing quality. The SIM40
has been designed for applications requiring maximum precision combined
with high economic viability. The user-friendly and practice-oriented design concept of the SIM40 makes for easy-to-operate functions, short conversion times and high flexibility. The SIM40 allows you to print on both flexible and rigid substrate materials such as circuit-boards, glass, ceramics and metal with strengths of up to 25 mm. These features make the SIM40 ideally suitable for small production series. The circuit-board clamping mechanism and support allow the machine to accommodate the circuit-boards and any other printing matter with a high degree of flexibility. It is possible to integrate a high-speed stenter frame. |
|||
|
|||
|
|||
|
|||
| Technical
Data: Approximate Dimensions: width: 800mm depth: 1150mm height: 1400mm Work Table Height: height: 850mm Print Area: min: 75mm x 75mm max: 300mm x 450mm Table Dimensions: 450mm x 550mm Board Thickness: min: 1mm max: 25mm Frame Size: min: 300mm x 300mm max: 590mm x 800mm Print Speed: min: 10 mm/s max: 110 mm/s Print Pressure: min: 0,5 bar max: 4,0 bar Table Movement: (X/Y1/Y2 - Axle) ±10mm Repeatability: mechanical < 10µm Air Supply Requirements: 5-6 bar Power Requirements: 230V 50/60 Hz Power Consumption: 0,5 KW Approximate Weight: 290 kg |
|||
|
|||
|
|||
