| Stencil Printing - SIM 20 | |||
|
|||

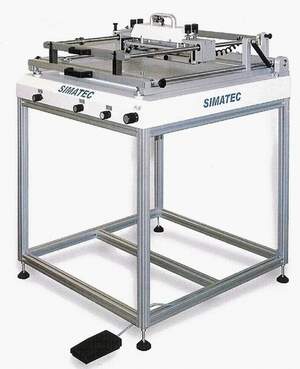

 (Picture shows machine with optional stand) |
|||
|
|||
| The
SIM20 is a manually operated, semi-automatic screen-printing and stencil-printing
machine. The lateral squeegee crossbeam and the squeegee pressure control
allow you to maintain a consistently high printing quality. The SIM20
has been designed for applications requiring maximum precision combined
with high economic viability. The user-friendly and practice-oriented design concept of the SIM20 makes for easy-to-operate functions, short conversion times and high flexibility. The SIM20 allows you to print on both flexible and rigid substrate materials such as circuit-boards, glass, ceramics and metal with strengths of up to 25 mm. These features make the SIM20 ideally suitable for small production series. The circuit-board clamping mechanism and support allow the machine to accommodate the circuit-boards and any other printing matter with a high degree of flexibility. It is possible to integrate a high-speed stenter frame. |
|||
|
|||
|
|||
|
|||
| Technical
Data: Approximate Dimensions: width: 800mm depth: 800mm height: 350mm Work Table Height: Table machine Print Area: min: 50mm x 50mm max: 450mm x 400mm Table Dimension: 500mm x 450mm Board Thickness: min: 1mm max: 25mm Frame Size: min: 300mm x 300mm max: 590mm x 590mm Print Speed: min: manual max: manual Print Pressure: min: 0,5 bar max: 4,0 bar Table Movement: (X/Y1/Y2 - Axle) ±10mm Repeatability: mechanical < 10µm Air Supply Requirements: 5-6 bar Power Requirements: 230V 50/60 Hz Power Consumption: 0,1 KW Approximate Weight: 70 kg |
|||
|
|||
|
|||
